The LeakShooter Ultrasonic Leak Detector with video camera

The LeakShooter Ultrasonic Leak Detector with video camera

The LeakShooter Ultrasonic Leak Detector with video camera

The LeakShooter Ultrasonic Leak Detector with video camera suitable for all industrial applications

The LeakShooter Ultrasonic Leak Detector with video camera suitable for all industrial applications

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera

The vShooter Vibration Analysis Camera



Accessories

The accessories for the Ultrasonic air / gas leak detector, the Leakshooter LKS1000 v2 with camera comes in a sturdy silver case, complete with headset, charger, USB cable plus software, holster and strap.

Compressed air ultrasonic leak detector leakshooter LKS1000 with camera in case

Ultrasonic leak detector LEAKSHOOTER LKS1000 v2 with camera in case

Ultrasonic air leak detector, the Leakshooter plus standard equipment in Silver case

The ultrasonic air leak detector Leakshooter also has a customised cover and a carry strap, which is hung around the neck. This is ideal for the user when working for long spells with the leakshooter. There is then NO possibility of dropping the Ultrasonic air leak detector leakshooter.

Compressed air ultrasonic leak detector leakshooter LKS1000 with camera

Leakshooter LKS1000 in holster

Ultrasonic air leak detector Leakshooter in holster and strap (included as standard equipment since 1st Jan 2015)

The Flex wand is ideal when you are working in awkward areas where you have difficulty in accessing very small connectors. The flexible 400 mm sensor may be used with both function AUTO or MANUAL. The best way to find the leak is to use the flexible wand and then the camera to take a picture of your leak.

LKS Flex

LKS Flexible Wand

The Flexprobe for the Ultrasonic air leak detector Leakshooter

The LKS PROBE Contact probe is specifically used for steam trap and mechanical applications (worn bearings, gears, etc). The LKS contact probe can be used to check steam traps and quickly hear internal flow through steam traps and valves. With the probe it is possible to detect anomalies (permanent leak of steam for example). Once again, when the defect is detected, you can take a picture and insert it in your report.



LKS ProbeThe Contact probe  for the Ultrasonic air leak detector Leakshooter

Leakshooter LKS 1000 working with contact probe

Leakshooter LKS 1000 working with contact probe



Ultrasonic air leak detector leakshooter checking for mechanical malfunctions

NEW !!!!! 1500mm Flexible Sensor Wand

new long 1500 mm flexible sensor Wand

new long 1500 mm flexible sensor Wand

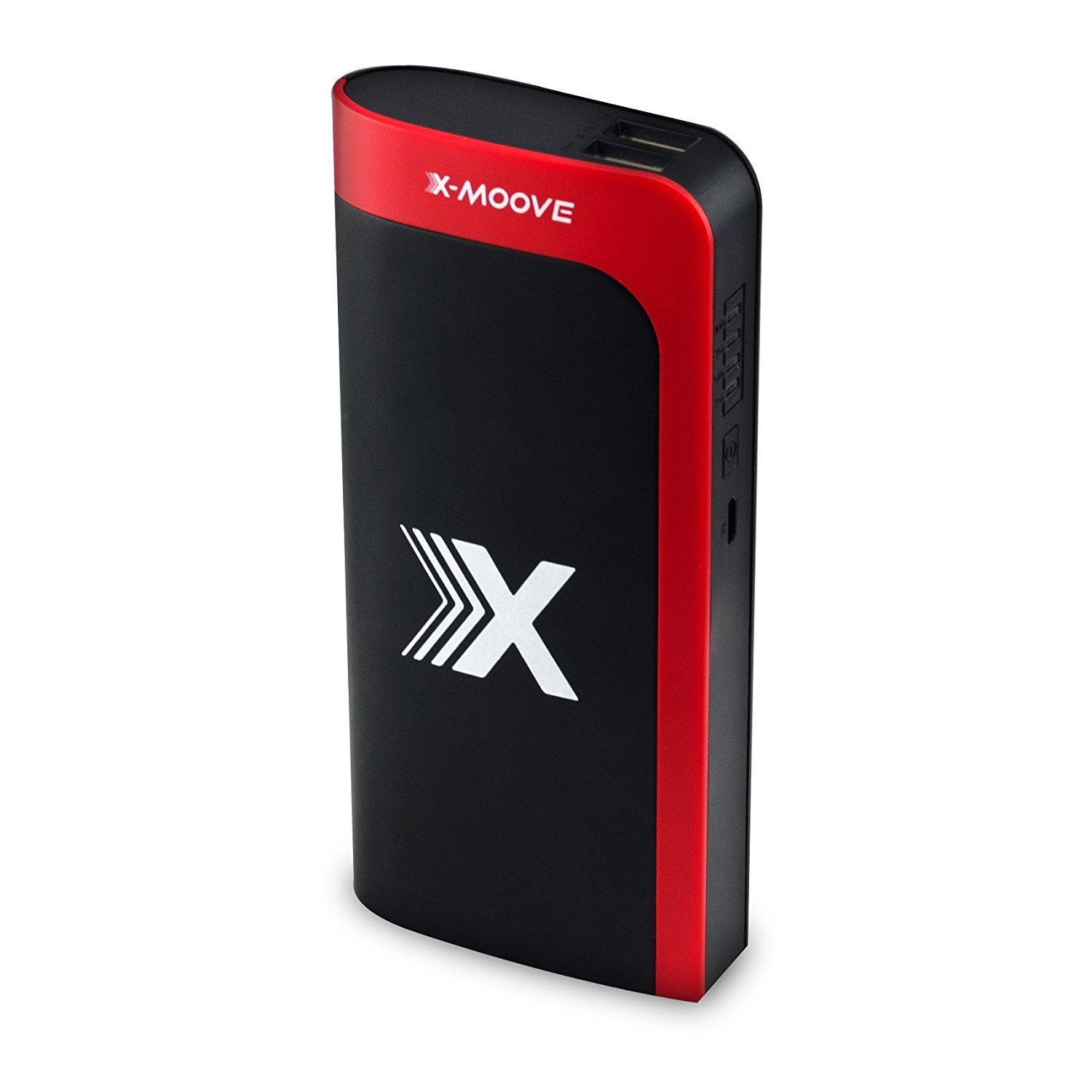

External Battery 12 000 mAh, which can be used with the ultrasonic air leak detector, the Leakshooter LKS 1000 v2



external-batteryExternal Battery 12 000 mAh[/caption]

Multi Ultrasonic Transmitter (LKS1 Dome), which can be used with the ultrasonic air leak detector Leakshooter

Multi ultrasonic dome emitter for Integrity & Tightness & Sealing control of:

  • Tank, container… (Storing liquid or gas fluids)
  • Door, window, frame, seals, … (Building applications)
  • Porthole, window, door, windshield, seals… (Aeronautic, automotive, marine/nautical…)
  • Compatible with the Ultrasonic air leak detector LEAKSHOOTER LKS 1000 leak detection camera
  • Built-in magnets for attaching to steel panelling or to a tripod
  • Visual and audible alarm for Low battery indication
  • 2x high/low power level (130-110 dB)
  • 13x Bi-ultrasonic emitter system 40 kHz for optimal results
  • 3 YEARS warranty
Omni-directional LKS1 Dome Multi-Ultrasonic Transmitter

Omni-directional LKS1 Dome Multi-Ultrasonic Transmitter

Multi Ultrasonic Transmitter LKS 1 Dome

Technical data:

LKS DOME1 Transmitter

  • Weight: 475g
  • 13 emitters giving Omni-directional ultrasound emission
  • High Power Output: 130 dB @ 40KHz
  • Low Power Output:  100 dB @ 40KHz
  • On/Off Control
  • Built-in magnets for attaching to steel panelling or tripod
  • Power Supply: 6 x AA alkaline batteries
  • Battery Life:  25 hours of operation
  • Dimensions: 190 x 100 x 60mm (max)
    • in leather case:  220 x 120 x 80mm (max)
  • Storm proof leather case to IP66, designed to protect if dropped
  • Neck strap for hands-free use

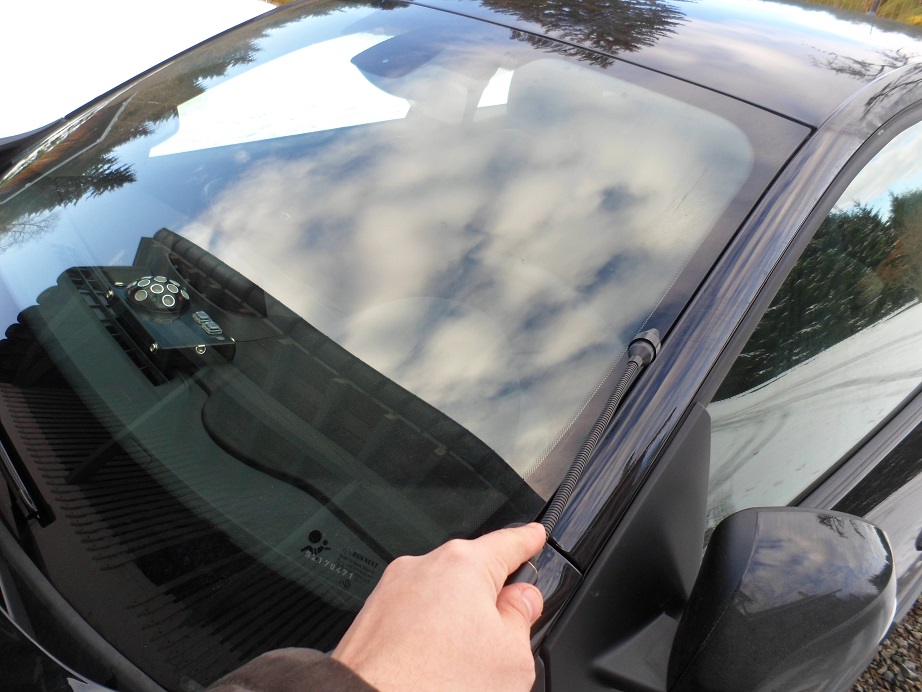

DOMECAR4            DOMECAR5

An application using the Dome transmitter and the Leakshooter LKS1000v2.  Checking for leaks around a windscreen. The Dome transmitter is placed inside the car and gives out a ultrasonic signal, (in the form of beep!, beep!, beep! )and the Leakshooter LKs 1000v2  with flexible wand is outside scanning around the perimeter checking for leaks.  The above can be used for tanks with bad welds, containers, etc,.

LKS DOME1 Transmitter with stand

Omni-directional LKS1 Dome Multi-Ultrasonic Transmitter with Stand

Omni-directional LKS1 Dome Multi-Ultrasonic Transmitter with Stand

Multi Ultrasonic Transmitter complete with stand

Omni-directional LKS1 Dome Multi-Ultrasonic Transmitter

Omni-directional LKS1 Dome Multi-Ultrasonic Transmitter
